Power Solution – UTP

Power Solution – UTP

Power Over UTP Cat5e/6
The power over UTP is a device developed to transfer video & power signals on a cat5e/6 cable for a distance of upto 300mts. These are quit helpful in case of large installation as these can make the installations faster & reduces the cost of whole project drastically.

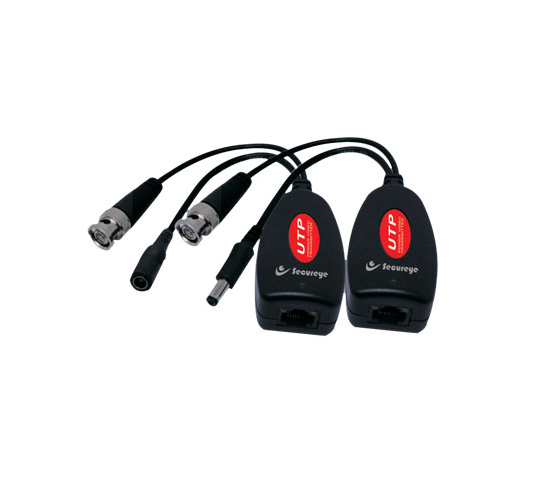

  • S-UTP

    Power solution on Coaxial Cable
    • Transmission Distance: 300 Meters
    • Input Power Supply: 12V DC 1.5Amp
    • Connector: Standard AC JACK
    • Max Output Current: 2.8Amp
    • Signal Band: 250MHz (-3db)
    • Interference Rejection: >60db
    • Video Output Connectors: BNC Male

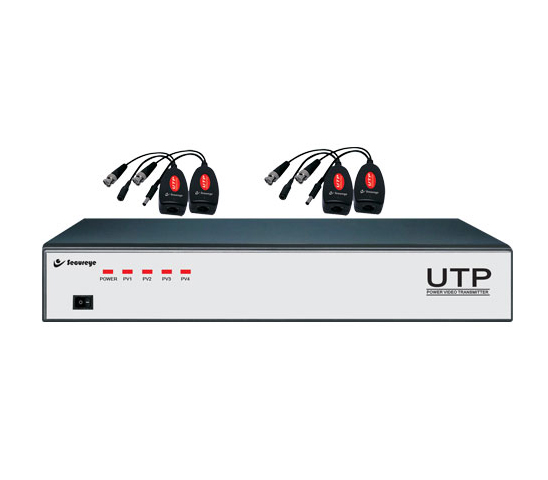

  • S-4UTP

    Power solution on Coaxial Cable
    • Transmission Distance: 300 Meters
    • Input Power Supply: 100~240V AC(50~60HZ)
    • Connector: Standard AC JACK
    • Max Output Current: 2.8Amp
    • Signal Band: 250MHz (-3db)
    • Video Output Connectors: BNC Male
    • Interference Rejection: >60db

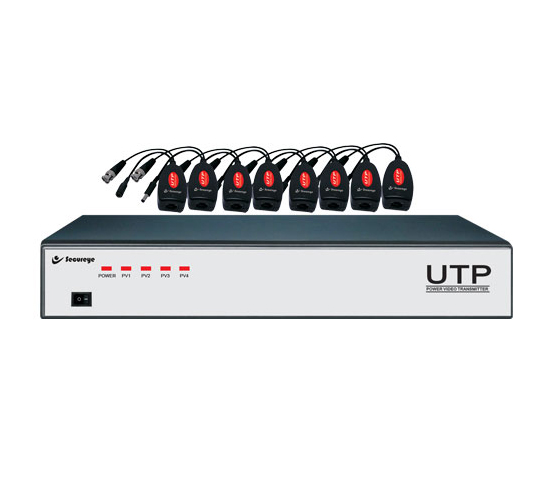

  • S-8UTP

    Power solution on Coaxial Cable
    • Transmission Distance: 300 Meters
    • Input Power Supply: 100~240V AC(50~60HZ)
    • Connector: Standard AC JACK
    • Max Output Current: 2.8Amp
    • Signal Band: 250MHz (-3db)
    • Video Output Connectors: BNC Male
    • Interference Rejection: >60db

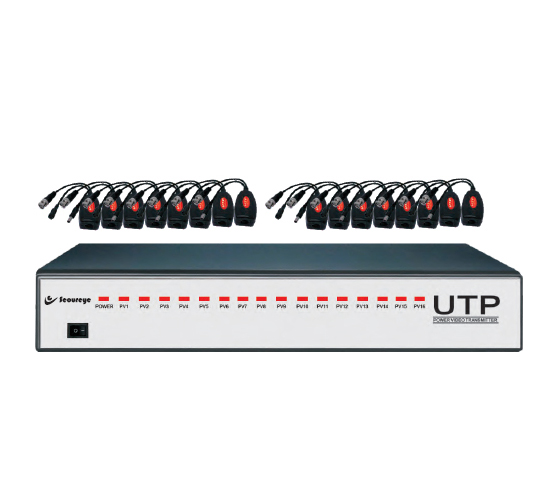

  • S-16UTP

    Power solution on Coaxial Cable
    • Transmission Distance: 300 Meters
    • Input Power Supply: 100~240V AC(50~60HZ)
    • Connector: Standard AC JACK
    • Max Output Current: 2.8Amp
    • Signal Band: 250MHz (-3db)
    • Video Output Connectors: BNC Male
    • Interference Rejection: >60db
