CCTV Accessories – Video Balun

•

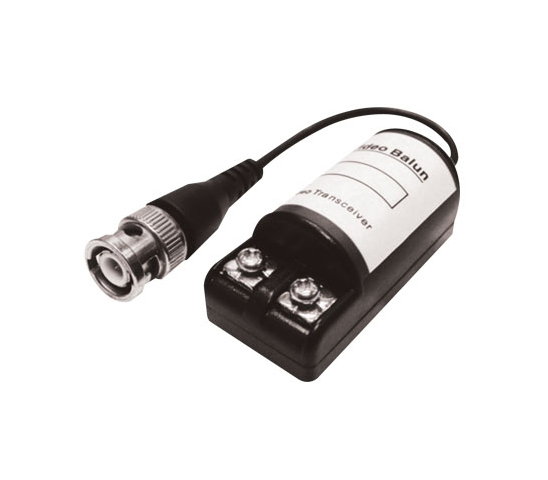

  S-VB

  BNC to Ethernet Video Balun

  • Upto 300m w/o Power
  • 1 Channel Passive Video Transceiver
  • Wire type One Unshielded Twisted Pair 24-16AWG
  • CAT-5/5E/6 UTP
  • Maximum 0.5dB
  • 2.1 Interlaced
  • Terminal Block
  • BNC(Male)
•

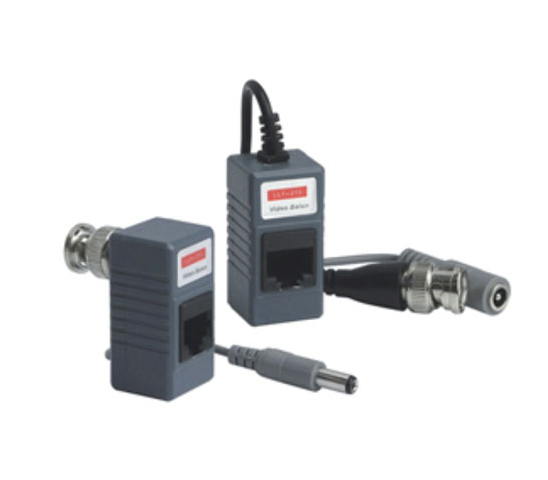

  S-VBP

  BNC to Ethernet with Power Video Balun

  • Upto 100m with Power
  • Upto 300m w/o Power
  • DC-6Mhz, Common-mode / Differential-mode Rejection: 15kHz to 6MHz (60dB typ)
  • -10°C ~ +50°C
  • 6,000V
  • 0~95%
•

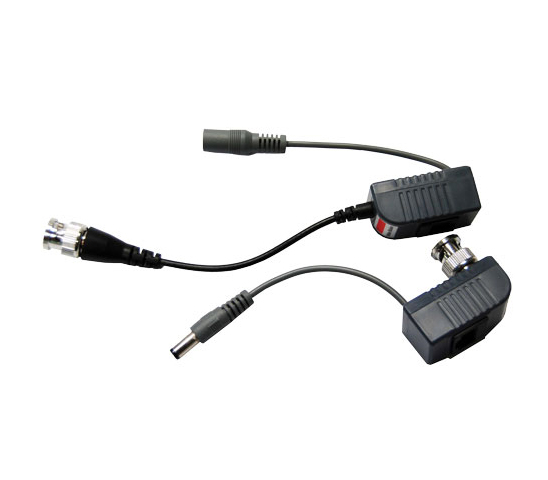

  S-VBPA

  1 Ch Video / Audio / Power

  • Effective Transmission distance 200m
  • DC-6Mhz, Common-mode / Differential-mode Rejection: 15kHz to 6MHz (60dB typ)
  • -10°C ~ +50°C
  • 6,000V
  • 0~95%
  • One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal
•

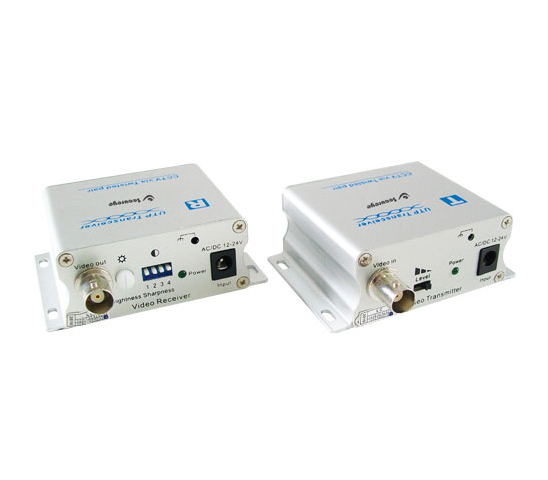

  S-VB1800

  Long Distance BNC to Ethernet

  • Longer transmission distance, higher video signal quality
  • Better interference rejection
  • Better Surge Suppression
  • Standard routing UTP, low installation cost
  • Transmission distance up to 1800m.
