HF INLAY

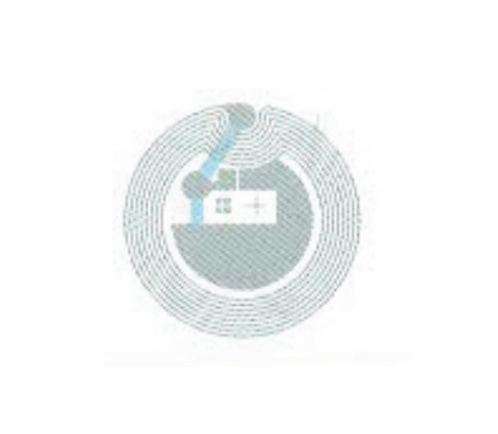

  • S-K3202

    Label
    • Product Size: 35mm
    • Inlay Size: 29mm
    • Antenna Size: 27.6mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: >4M
    • Protocol: 14443A
    • Integrated Chip: S50/F08/Ultalight

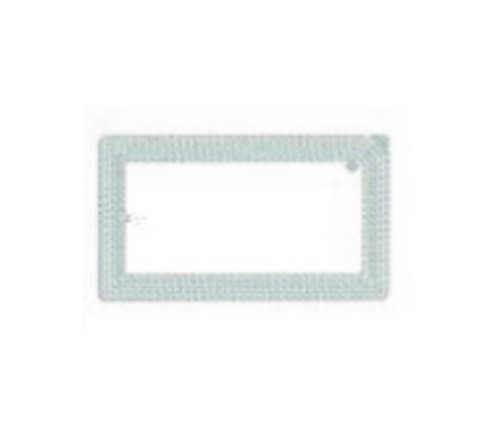

  • S-K3206

    Label
    • Product Size: 85x55mm
    • Inlay Size: 77x45mm
    • Antenna Size: 75x43mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 5M
    • Protocol:14443A
    • Integrated Chip: S50/F08/Ultralight

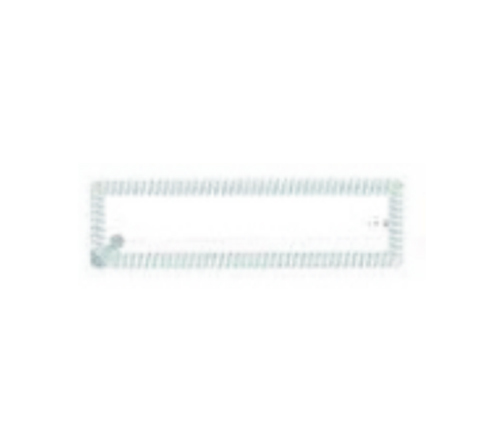

  • S-K3208

    Label
    • Product Size: 85x30mm
    • Inlay Size: 77x23mm
    • Antenna Size: 75x21mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 3M
    • Protocol: 14443A
    • Integrated Chip: S50/F08/Ultalight

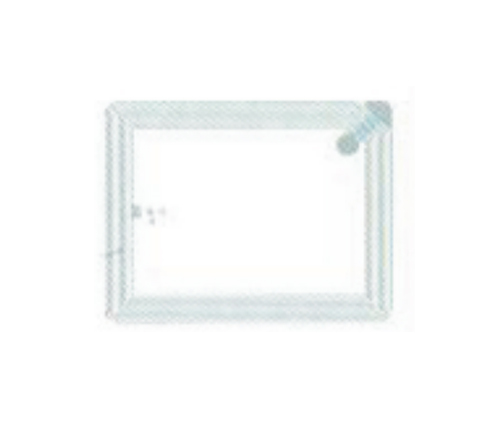

  • S-K3210

    Label
    • Product Size: 55x40mm
    • Inlay Size: 46x36mm
    • Antenna Size: 44x34mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 4M
    • Protocol: 14443A
    • Integrated Chip: S50/F08/Ultalight

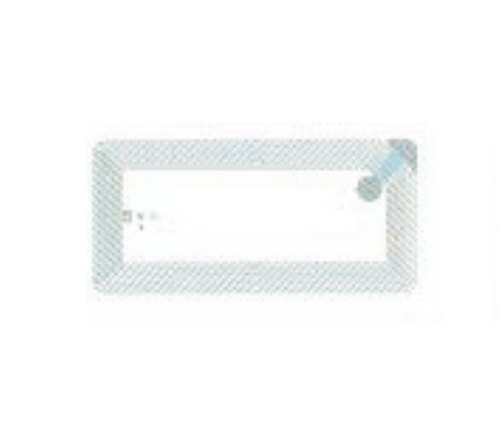

  • S-K3212

    Label
    • Product Size: 55x35mm
    • Inlay Size: 46x23mm
    • Antenna Size: 44x21mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: >4M
    • Protocol: 14443A
    • Integrated Chip: S50/F08/Ultalight

  • S-K3216

    Label
    • Product Size: 45X35MM
    • Inlay Size: 37X21MM
    • Antenna Size: 34.5X18.5mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 3M
    • Protocol: 14443A
    • Integrated Chip: S50/F08/Ultalight

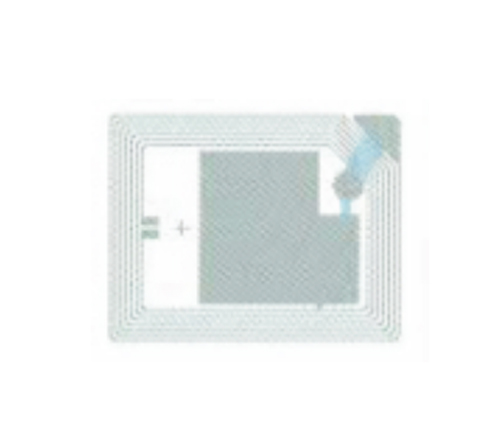

  • S-K3218

    Label
    • Product Size: 35X35MM
    • Inlay Size: 25x20mm
    • Antenna Size: 23x18mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 2M
    • Protocol: 14443A
    • Integrated Chip: S50/F08/Ultalight

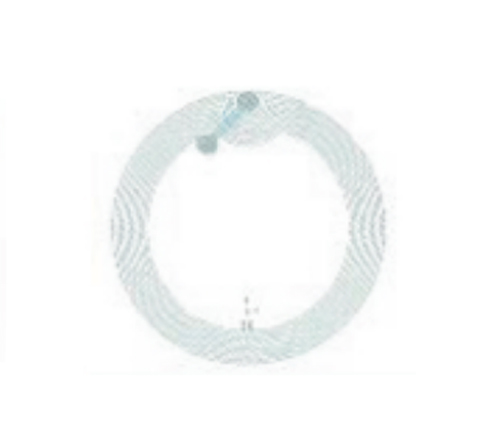

  • S-K3220

    Label
    • Product Size: 55MM
    • Inlay Size: 46mm
    • Antenna Size: 44mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 5M
    • Protocol: 14443A
    • Integrated Chip: S50/F08/Ultalight

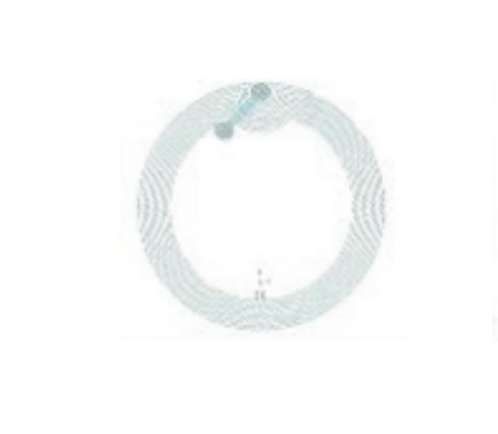

  • S-K3222

    Label
    • Product Size: 45MM
    • Inlay Size: 37mm
    • Antenna Size: 35mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 4M
    • Protocol: 14443A
    • Integrated Chip: S50/F08/Ultalight

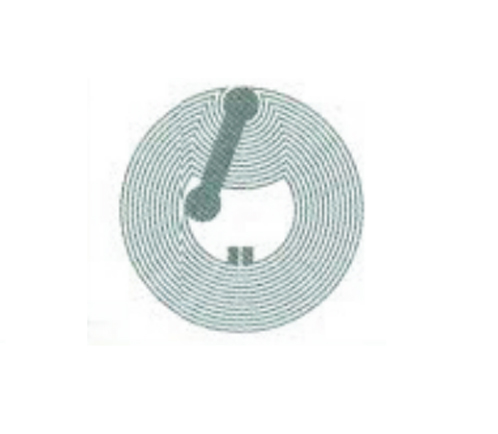

  • S-K3226

    Label
    • Product Size: 30mm
    • Inlay Size: 22mm
    • Antenna Size: 20mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: 2-3cm
    • Protocol: 14443A
    • Integrated Chip: S50/F08/Ultalight

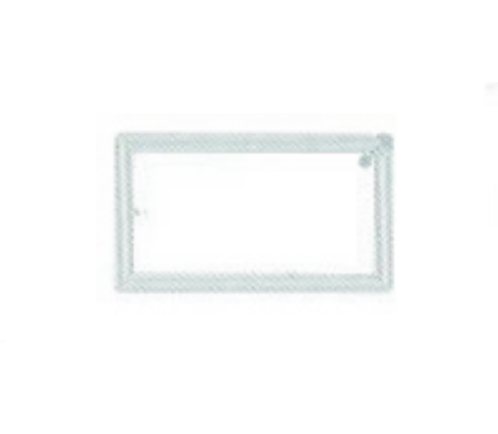

  • S-K3228

    Label
    • Product Size: 85x55mm
    • Inlay Size: 77x45mm
    • Antenna Size: 75x43mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 5M
    • Protocol: 14443A
    • Integrated Chip: Nitag203

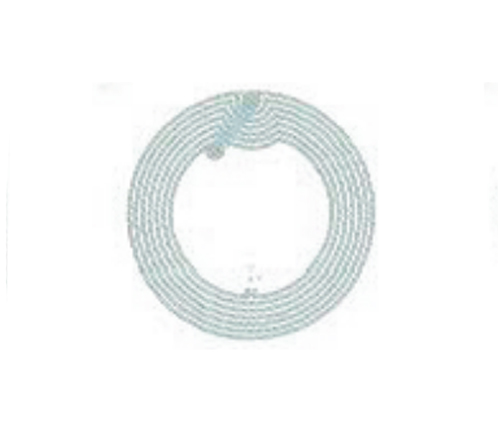

  • S-K3230

    Label
    • Product Size: 50mm
    • Inlay Size: 46mm
    • Antenna Size: 44mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 5M
    • Protocol: 14443A
    • Integrated Chip: Nitag203

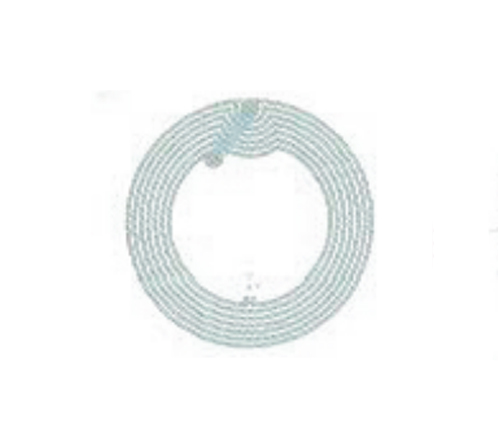

  • S-K3232

    Label
    • Product Size: 35mm
    • Inlay Size: 27mm
    • Antenna Size: 25mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 2M
    • Protocol: 14443A
    • Integrated Chip: Nitag203

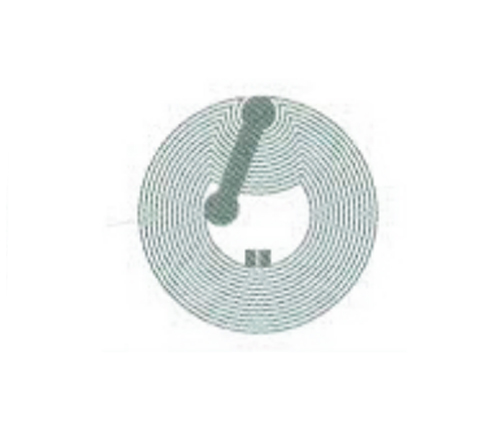

  • S-K3236

    Label
    • Product Size: 30mm
    • Inlay Size: 26mm
    • Antenna Size: 24mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 2M
    • Protocol: 14443A
    • Integrated Chip: Nitag203

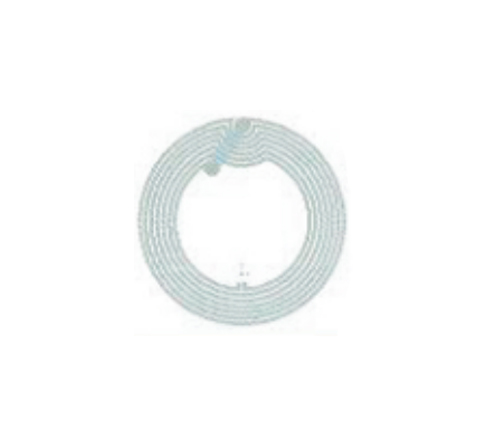

  • S-K3238

    Label
    • Product Size: 35mm
    • Inlay Size: 24mm
    • Antenna Size: 22mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 2M
    • Protocol: 14443A
    • Integrated Chip: Nitag203

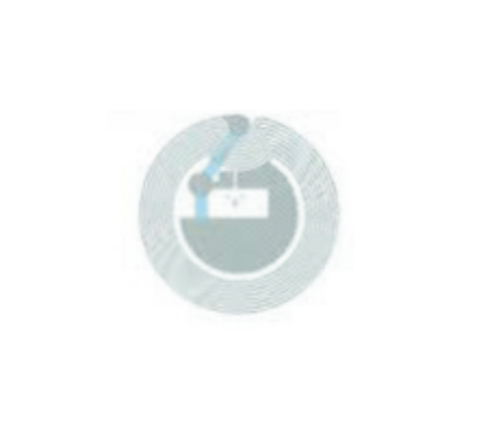

  • S-K3250

    Label
    • Product Size: 35mm
    • Inlay Size: 27mm
    • Antenna Size: 25mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 2-3M
    • Protocol: 14443A
    • Integrated Chip: S50,F08

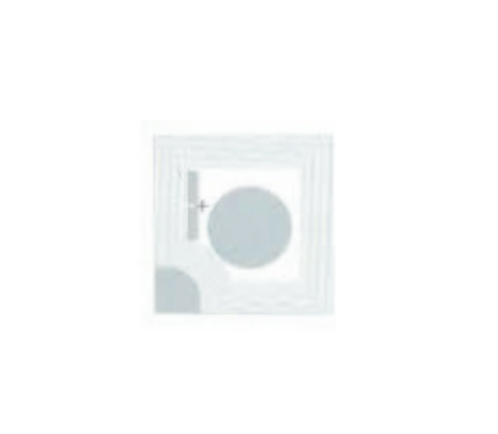

  • S-K3252

    Label
    • Product Size: 20x20mm
    • Inlay Size: 15.5x15.5mm
    • Antenna Size: 14.5x14.5mm
    • Frequency: 13.8-14.2MHz
    • Reading Distance: ≥ 2-3M
    • Protocol: 14443A
    • Integrated Chip: S50/FM1108

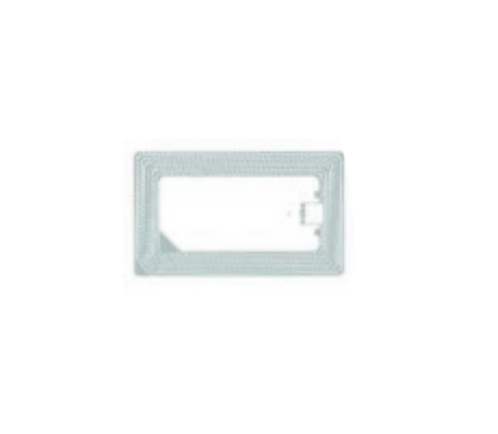

  • S-K3102

    Label
    • Product Size: 84x55mm
    • Inlay Size: 78x47mm
    • Antenna Size: 76x45mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 5M
    • Protocol: ISO15693
    • Integrated Chip: NXP Icode2

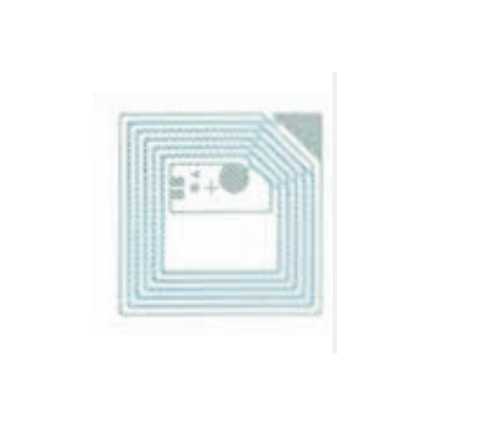

  • S-K3106

    Smart label Seif-destroy label
    • Product Size: 30x30mm
    • Inlay Size: 21x21mm
    • Antenna Size: 19.5x19.5mm
    • Frequency: 13.5-14.5MHz
    • Reading Distance: ≥ 3cm
    • Protocol: ISO15693
    • Integrated Chip: NXP Icode2

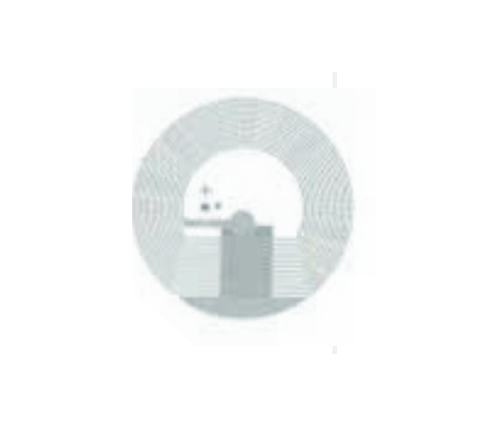

  • S-K3108

    Smart label Seif-destroy label
    • Product Size: 35mm
    • Inlay Size: 27mm
    • Antenna Size: 25mm
    • Frequency: 14-14.4MHz
    • Reading Distance: ≥ 2cm
    • Protocol: ISO15693
    • Integrated Chip: NXP Icode2
