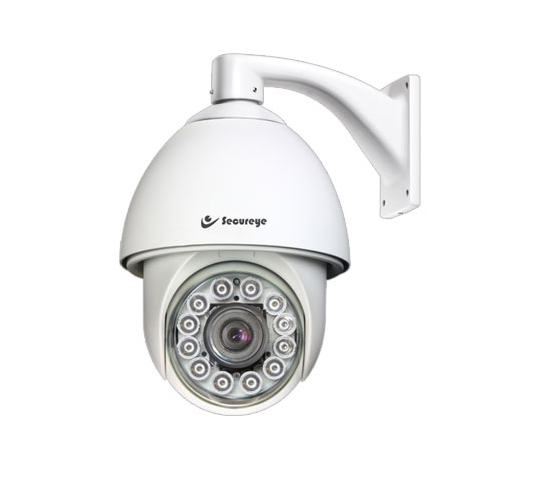

High Speed Dome Camera With IR & OSD
Download| Technical Specification | |
| Image Sensor | 1/4” Super HAD CCD |
| Signal System | PAL/NTSC |
| Horizontal resolution | 540TVL |
| Minimum illumination | 0.01 Lux (Digital Slow Shutter up) 0 Lux (Night Mode) |
| PAN/Angle manual speed | 0° -360° (Endless) 0 0 More than 0.5 ~300 /sec (Zoom Proportional) |
| Tilt/Angle manual speed | 0~90° 0 More than 120 ~1sec (Zoom Proportional) |
| Dwell setup | Home place/autoscan/tourscan/patternscan |
| Baud Rate | 1200bps, 2400bps, 4800bps, 9600bps |
| ID (Camera Address) | 0~256 address |
| Communication | Pelco-P\D(RS-485 Port) |
| Preset Position | 128 |
| OSD | English |
| IR LED | 12 (Very Big) & 30 (Small) |
| IR Mode | W-T & W/T |
| IR Switch | Auto/On/Off |
| Auto Day/Night | On/Off |
| IR Distance | 200mts. |
| Mirror | On/Off |
| Aperture | 0-15 |
| Exposure Mode | Auto/Shutter/Manual/IRIS/Bright |
| Backlight | Off/On |
| Privacy Zone | 8 |
| System Act | Power up Act/Leisure Act |
| Scan | Auto scan, limit scan(speed adjustable) |
| Tour scan | 4 tour, 16 preset position per tour speed and dwell time can be adjustable, |
| Pattern scan | 4 pattern, 15 minutes recording for each pattern |
| Body Type | IP 66 |
| Effective Pixels | 752 (H) x 582 (V) |
| S/N Ratio | 50db |
| Power | AC 24V 50/60HZ 1.5A |
| Humidity | <90% |
| Power Consumption | 15w - 25w |
| Operating Temperature | -20 C to 60 C |
