Power solution on Coaxial Cable

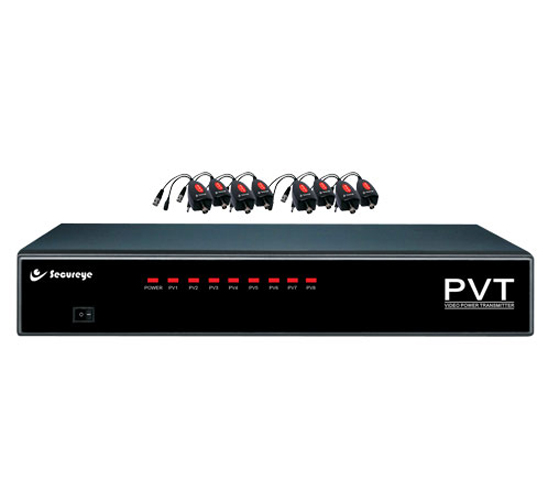

S-8PVT

  • Transmission Distance: 800 Meters
  • Input Power Supply: 100~240V AC(50~60HZ)
  • Output Voltage: DC 24V 5A
  • Output ripple: Less than 240MV
  • Video input impedanc: BNC:75Ù
enquiry
Download
Technical Specification
Transmission Distance 800 Meters with interference-free
Wire Category Coaxial Cable:75-5 (RG60, RG 59 recommended) or higher
Video transmission bandwith 0.5MHZ-10MHz
Input voltage 110~220V ±20%, the convert between 110V and 220V ±20%
Input frequency 50MHZ-60MHz 20%
Leakage current 110V~220V ±20% Less than 3.5MA
Output voltage DC 12V 5A
Output voltage adjustment range 24~28V
Output current thr rated 800MA, MAX 1000MA
Output ripple Less than 240MV
Overload protection Output current more than 800MA, Protection circuit disconnect the load, and then automatic connection after the working current to be normal
Video input 1.0v-vP Automatically adapted
Video input impedanc Coax BNC:75Ù
Working Humidity 10%--90%
Material Metal
Working Temperature -50°C ~ +50°C
