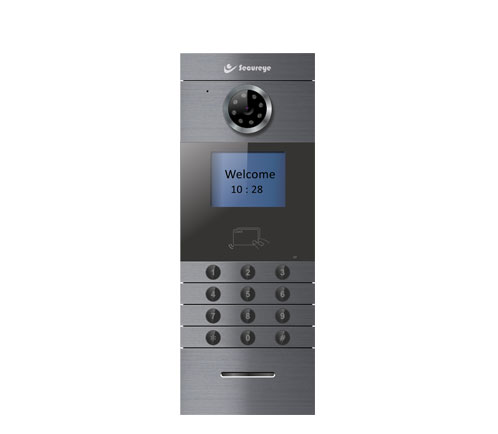

IP Multi Apartment System

S-TW1000

  • ŸDigital video / audio coding, multi-channels

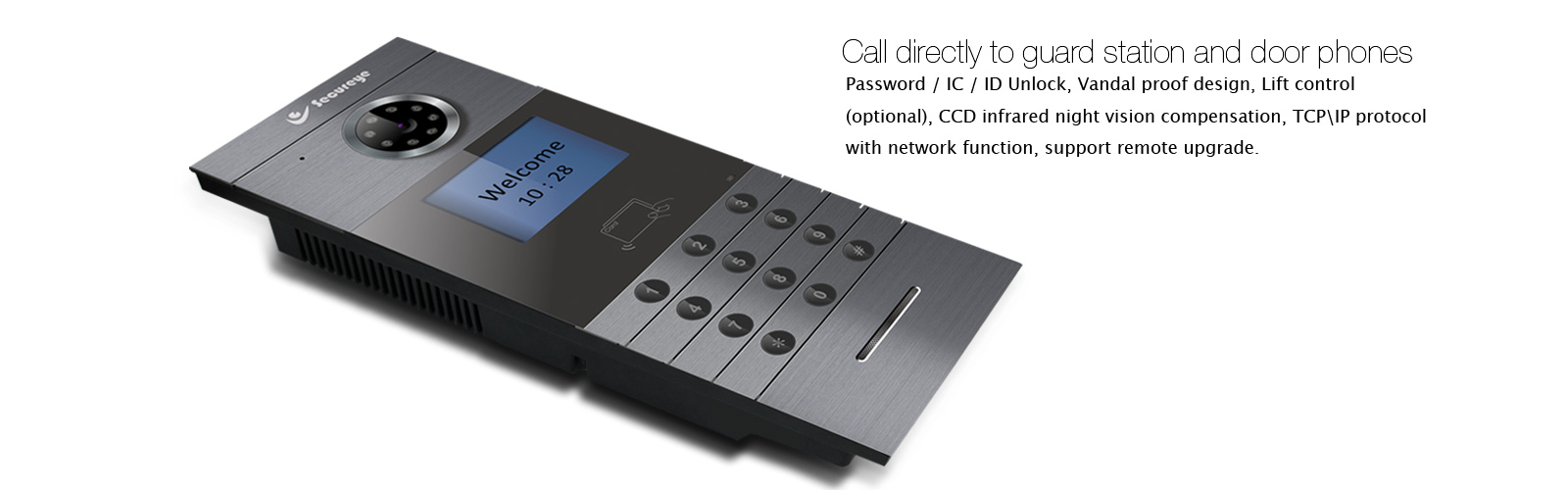

  • ŸCall directly to guard station and door phones
  • ŸPassword unlock
  • ŸIC/ID card unlock
  • Pphoto snapshot (optional function)
  • ŸVandal proof design
  • ŸLift control(optional)
  • ŸPicture snap function(optional)
  • ŸIntimidated unlock alarm function
  • ŸDoor contact alarm function
  • ŸCCD infrared night vision compensation
  • ŸTCP\IP protocol with network function, support remote upgrade
enquiry
Download
Technical Specification
Display 10.16cm (4) TFT-LCD
Camera 1/3 inch CCD
Resolution 420TV Line
Working current ≤400mA
Quiescent current ≤250mA
Input Voltage DC18V
Protection grade IP33
Conversation time About 120s
IC/ID card reading distance ≤30mm
Network trans. mode TCP/IP
Network Port RJ45
Transmission range Router or PBX less than 100m, FOT more than 100m
Size of Bottom Case 147*393*80mm
External Dimensions 130*378*65
Working temperature - 30°C ~ 55°C
Working humidity 45% - 95%
