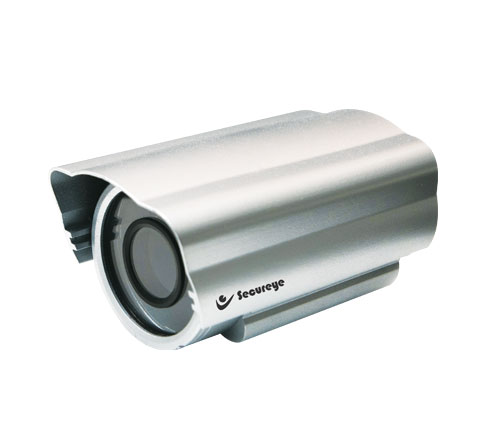

IP 4MP Varifocal Weatherproof IR Camera

S-4W-4MIRVWP

  • Support IP Filter function
  • Support trigger of Voice Alarm
  • Support Privacy Mask area on Live Video
  • Support Two Way audio
  • Support Flip & Mirror
  • Support RTC (Real Time Clock) function
  • Support Hardware OSD of time display
Enquiry
Download
Technical Specification
Image Sensor 5 Megapixel CMOS
Sensor Size 1/2.5 inch progressive
Effective Pixels 4 MP (2032(H) x 1936(V)) / Full HD (1920(H) x 1080(V))
Minimum Illumination 0 Lux / F1.4 (IR ON)
Shutter Speed Auto / Auto-indoor / Auto-Night Mode
Shutter Time 100us – 33333us
AWB Yes
AE Yes
WDR Yes
DNR 2D Noise Filter
Video quality setting Yes
Auto-IRIS Yes, DC-Auto-IRIS
Mechanical ICR Yes
IR LED Yes, IR Distance: 30 ~ 40m
Lens Mount Board Lens type
Focal Length 2.8~12mm Varifocal
Angle of View Diagonal 135°~35°/Horizontal 93°~28.7° /Vertical 61.2°~21.6°
Focus Manually
Video Compression Stream 1: H.264 / MJPEG / Stream 2: H.264 / MPEG 4 / MJPEG
Streaming Dual Streaming
Frame Rate Main : 14 fps (maximum) for 4 MP (2032x1936),real time for Full HD 1080p(1920x1080), HD-720p(1280x720) Sub: real time for CIF/QCIF when main stream is Full HD and lower, QCIF 20 fps for 3 MP
Video Output 1port
Audio Input Compression MPEG-1 layer 2, G.711
Audio input 1port
Audio Output Compression ADPCM
Audio Output 1port
Motion Detection Yes
Digital Input 1port
Digital Output 1port
Alarm FTP& E-mail
Ethernet 10/100 Base T Ethernet
Protocol IPv4/IPv6, DHCP, PPPoE, Dynamic DNS, TCP/IP, SMTP, UPnP, HTTP HTTP tunneling(RTSP over HTTP), HTTPs, RTP, RTSP, DNS client, FTP client, NTP
Password Yes
IP Address Filtering Yes
POE Yes
System SoC Embedded ARM-Linux
Frequency 50/60 Hz
Operating Temperature -10 °C ~ 50°C
Humidity 10% to 90%(no condensation)
Power 12V DC
Power Consumption 5.52 Watt
