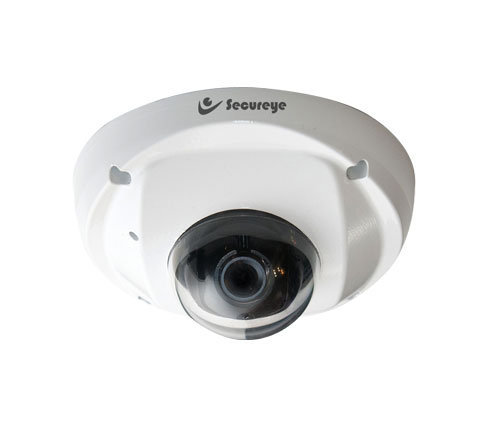

IP 3MP Mini Dome Camera

S-4MD-4MWP

  • Support IP Filter Function
  • Support trigger of Voice Alarm
  • Support Privacy Mask area on Live Video
  • Support Bandwidth Detection Tool
  • Support Flip & Mirror
  • Support RTC (Real Time Clock) function
  • Support Day & Night Mode
  • Support 3GPP
Enquiry
Download
Technical Specification
Image Sensor 5 Megapixel CMOS
Sensor Size 1/2.5” progressive
Minimum Illumination 0.01 Lux / F1.4
Shutter Speed Auto / Auto-indoor / Auto-Night Mode
Shutter Time 100us – 33333us
Effective Pixels 3 MP (2048(H) x 1536(V)) / Full HD (1920(H) x 1080(V))
WDR Yes
AWB Yes
AE Yes
DNR 2D Noise Filter
Video quality setting Yes
Lens Mount Board Lens type
Focal Length 3.3mm
Angle of View Diagonal 160° / Horizontal 100° / Vertical 88°
Focus Manually
Video Compression Stream 1: H.264 / MJPEG / Stream 2: H.264 / MPEG 4 / MJPEG
Streaming Dual Streaming
Frame Rate Main : 12 fps (maximum) for 3 MP (2032x1536), real time for Full HD 1080p(1920x1080), HD-720p(1280x720) Sub: real time for CIF/QCIF, QCIF 20 fps for 3 MP
Video Output 1port
Audio Input Compression MPEG-1 layer 2, G.711
Audio input Microphone
Motion Detection Yes
Alarm FTP& E-mail
Recording Manually Yes
Post-recording 1port
SD Supported
Ethernet 10/100M Base-T Ethernet
Protocol IPv4/IPv6, DHCP, PPPoE, Dynamic DNS, TCP/IP, SMTP, UPnP, HTTP HTTP tunneling(RTSP over HTTP), HTTPs, RTP, RTSP, DNS client, FTP client, NTP
Password Yes
IP Address Filtering Yes
System SoC Embedded ARM-Linux
Frequency 50/60 Hz
Operating Temperature -10 °C ~ 50°C
Humidity 10% to 90%(no condensation)
Power 12V DC /PoE(802.3af) (Optional)
Power Consumption 3.6 Watt
