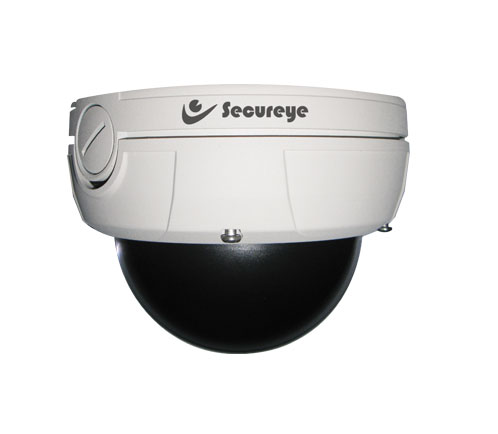

IP 4MP Dome IR Camera

S-4D-4MIR

  • Support IP Filter function
  • Support trigger of Voice Alarm
  • Support Privacy Mask area on Live Video
  • Support Two Way audio
  • Support Flip & Mirror
  • Support RTC (Real Time Clock) function
  • Support Hardware OSD of time display
  • Support 3GPP
  • Support Day & Night mode
  • Auto Recovery when disconnected
Enquiry
Download
Technical Specification
Image Sensor 5 Megapixel CMOS
Sensor Size 1/2.5 inch progressive
Effective Pixels 4 MP (2032(H) x 1936(V)) / Full HD (1920(H) x 1080(V))
Minimum Illumination 0 Lux / F1.4 (IR ON)
Shutter Speed Automatic / Night / Outdoor mode
Shutter Time 100us – 33333us
AWB Yes
AE Yes
DNR 2D Noise Filter
Video quality setting Yes
Lens Mount Board Lens type
Focal Length 3.6mm
IR LED LED Array IR
Angle of View Diagonal 100.2° / Horizontal 77° / Vertical 54°
Focus Manually
Video Compression Stream 1: H.264 / MJPEG / Stream 2: H.264 / MPEG 4 / MJPEG
Streaming Dual Streaming
Frame Rate Main : 14 fps (maximum) for 4 MP (2032x1936) real time for Full HD 1080p(1920x1080), HD-720p(1280x720) Sub: real time for CIF/QCIF when main stream is Full HD and lower, QCIF 20 fps for 3 MP, QCIF 16 fps for 4 MP
Video Output 1port
Audio Input Compression MPEG-1 layer 2, G.711
Audio input 1port
Audio Output Compression ADPCM
Audio Output 1port
Motion Detection Yes
Digital Input 1port
Digital Output 1port
Alarm FTP& E-mail
Ethernet 10/100 Base T Ethernet
Protocol IPv4/IPv6, DHCP, PPPoE, Dynamic DNS, TCP/IP, SMTP, UPnP, HTTP HTTP tunneling(RTSP over HTTP), HTTPs, RTP, RTSP, DNS client, FTP client, NTP
Password Yes
IP Address Filtering Yes
System SoC Embedded ARM-Linux
Frequency 50/60 Hz
Operating Temperature -10°C ~ 50°C
Humidity 10% ~ 90%(no condensation)
Power 12V DC
Power Consumption 4.08 Watt
