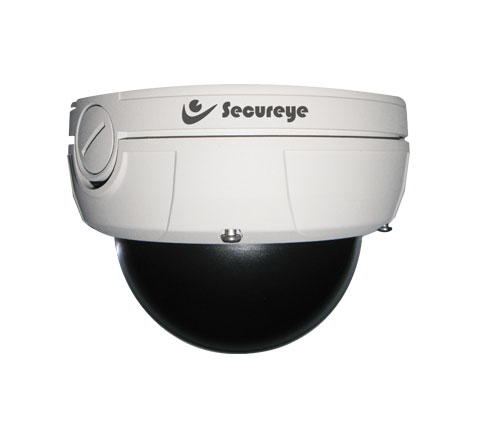

IP 4MP Dome Camera
Download| Technical Specification | |
| Image Sensor | 5 Megapixel CMOS |
| Sensor Size | 1/2.5” progressive |
| Minimum Illumination | 0.01 Lux / F1.4 |
| Shutter Speed | Automatic / Night / Outdoor mode |
| Shutter Time | 100us – 33333us |
| Effective Pixels | 4 MP (2032(H) x 1936(V)) / Full HD (1920(H) x 1080(V)) |
| Auto IRIS | Supported |
| AWB | Yes |
| AE | Yes |
| DNR | 2D Noise Filter |
| Video quality setting | Yes |
| Lens Mount | Board Lens type |
| Focal Length | 3.6mm |
| Angle of View | Diagonal 100.2° / Horizontal 77° / Vertical 54° |
| Focus | Manually |
| Video Compression | Stream 1: H.264 / MJPEG / Stream 2: H.264 / MPEG 4 / MJPEG |
| Streaming | Dual Streaming |
| Frame Rate | Main: 14 fps (maximum) for 4 MP (2032x1936) real time for Full HD 1080p(1920x1080), HD-720p(1280x720) Sub: real time for CIF/QCIF when main stream is Full HD and lower, QCIF 20 fps for 3 MP, QCIF 16 fps for 4 MP |
| Video Output | 1port |
| Audio Input Compression | MPEG-1 layer 2, G.711 |
| Audio input | 1port |
| Audio Output Compression | ADPCM |
| Audio Output | 1port |
| Motion Detection | Yes |
| Digital Input | 1port |
| Digital Output | 1port |
| Alarm | FTP& E-mail |
| Ethernet | 10/100 Base T Ethernet |
| Protocol | IPv4/IPv6, DHCP, PPPoE, Dynamic DNS, TCP/IP, SMTP, UPnP, HTTP HTTP tunneling(RTSP over HTTP), HTTPs, RTP, RTSP, DNS client, FTP client, NTP |
| Password | Yes |
| IP Address Filtering | Yes |
| System | SoC Embedded ARM-Linux |
| Frequency | 50/60 Hz |
| Operating Temperature | -10° C ~ 50°C |
| Humidity | 10% ~ 90%(no condensation) |
| Power | 12V DC |
| Power Consumption | 4.08 Watt |
