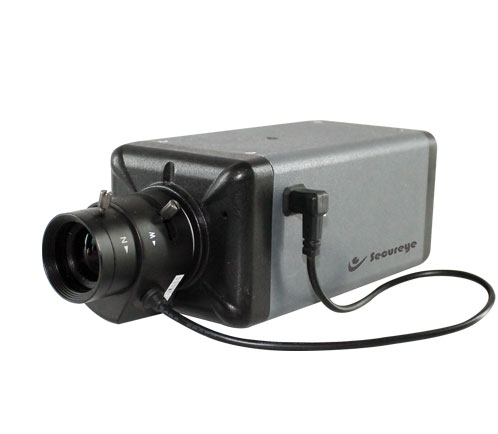

P 4MP CS Mount Camera

S-4C-4M

  • Support IP Filter function
  • Support trigger of Voice Alarm
  • Support Privacy Mask area on Live Video
  • Support Two Way audio
  • Support Flip & Mirror
  • Support RTC (Real Time Clock) function
  • Support Hardware OSD of time display
  • Support 3GPP
  • Support Day & Night mode
  • Auto Recovery when disconnected
Enquiry
Download
Technical Specification
Image Sensor 5 Megapixel CMOS
Sensor Size 1/2.5 inch progressive
Effective Pixels 4 MP (2032(H) x 1936(V)) / Full HD (1920(H) x 1080(V))
Minimum Illumination 0 Lux / F1.4
Shutter Speed Auto / Auto-indoor / Auto-Night Mode
Shutter Time 100us – 33333us
AWB Yes
AE Yes
DNR 2D Noise Filter
Video quality setting Yes
Auto-IRIS Yes, DC
IR Cut Filter Yes
Lens CS Mount (Optional)
Video Compression Stream 1: H.264 / MJPEG / Stream 2: H.264 / MPEG 4 / MJPEG
Streaming Dual Streaming
Frame Rate Main : 14 fps (maximum) for 4 MP (2032x1936) real time for Full HD 1080p(1920x1080), HD-720p(1280x720) Sub: real time for CIF/QCIF when main stream is Full HD and lower, QCIF 20 fps for 3 MP, QCIF 16 fps for 4 MP
Video Output 1Port, BNC type
Audio Input Compression MPEG-1 layer 2, G.711
Audio input 1port, Built in Mic.
Audio Output Compression ADPCM
Audio Output 1port, 3.5mm Phone Jack
Motion Detection Yes
Digital Input 1port
Digital Output 1port
Alarm FTP& E-mail
Recording Manually Yes
Pre-recording Yes
Post-recording Yes
SD/USB Supported
Ethernet 10/100 Base T Ethernet, 2x5 Pin Header
Protocol IPv4/IPv6, DHCP, PPPoE, Dynamic DNS, TCP/IP, SMTP, UPnP, HTTP HTTP tunneling(RTSP over HTTP), HTTPs, RTP, RTSP, DNS client, FTP client, NTP
Password Yes
IP Address Filtering Yes
System SoC Embedded ARM-Linux
Frequency 50/60 Hz
Operating Temperature -10°C ~ 50°C
Humidity 10% ~ 90%(no condensation)
Power 12V DC
Power Consumption 5.52 Watt
