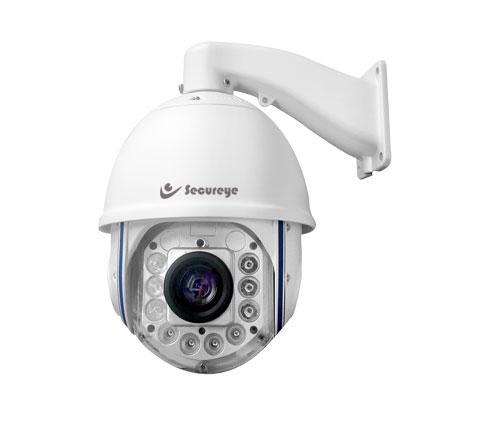

IP High Speed Dome 36x Camera

S-IPHSD-432IR

  • Support Day & Night Mode
  • 36x Optical & 12x Digital Zoom
  • Support ONVIF
  • Support RTC (Real Time Clock) Function
  • Support remote update software
  • Built-in Web server
  • Auto-recovery
Enquiry
Download
Technical Specification
Sensor 1/4" Color CMOS Senor
System SoC Embedded ARM-Linux
Zoom 36x Optical & 12x Digital
Video Compression Stream 1:H.264 / MJPEG, Stream 2: H.264 / MPEG 4 / MJPEG
Streaming Dual Streaming
Frame Rate Main: PAL @ 25fps, Full D1(720x576), CIF(352x288), QCIF(176x144) NTSC@ 30fps, Full D1(720x480), CIF(352x240), QCIF(176x120)Sub: PAL @ 25fps for CIF / NTSC@ 30fps for CIF
Optical Zooming 36x Optical & 12x Digital Zoom
Minimum Illuminition 0 Lux / F1.4
IR LED 10 Big Size LED Array
IR Range 150 ~ 200m
Video Output 1Port
Audio Input Compression MPEG-1 layer 2, G.711
Audio Input 1 Port
Audio Output Compression ADPCM
Audio Output 1 Port
Motion Detection Yes
S/N Ratio >50dB
Shutter Speed PAL: 1/50s-1/100,000s NTSC: 1/60s -1/100,000s
Alarm FTP& E-mail
Recording Manually Yes
Pre-recording Yes
Post-recording Yes
SD/USB Supported(Optional)
Ethernet 10/100 Base T Ethernet
Protocol IPv4/IPv6, DHCP, PPPoE, Dynamic DNS, TCP/IP, SMTP, UPnP, HTTP HTTP tunneling(RTSP over HTTP), HTTPs, RTP, RTSP, DNS client, FTP client, NTP
Password Yes
IP Address Filtering Yes
P/T/Z Control Built-in RS485 P/T/Z control
Rotation Angle Horizontal: 0 ~ 360 Vertical: 0 ~ 90
Rotation Speed Horizontal: 20 /s Vertical: 20 /s
Operating Temperature -10 C ~ 50 C
Humidity 10% to 90%(no condensation)
Power DC15V 2.4A
