- IP 2MP High Speed Dome IR Camera with 30X Optical Zoom

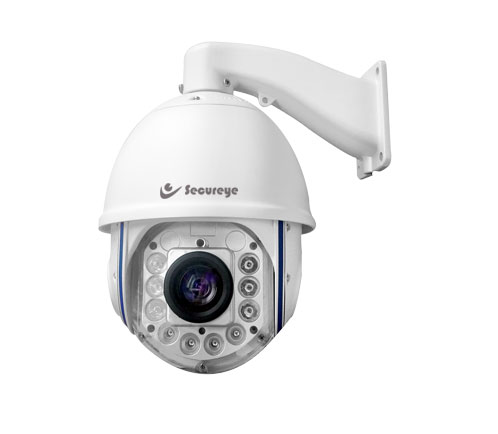

IP 2MP High Speed Dome IR Camera with 22X Optical Zoom
Download| Technical Specification | |
| Images sensor | 1/3” Sony Progressive scan CCD |
| Effective pixels | 2MP |
| Zoom | 22x Optical |
| Minimum lllumination | 0 Lux / F1.4 (IR ON) |
| White balance | Auto/Manual/One Touch WB/ ATW |
| AGC | Auto/ Manual |
| S/N Ratio | > 50 dB |
| BLC | ON/OFF |
| Shutter time | 1/25-1/100,000s |
| Day & Night | ICR |
| Auto Focus | Auto /Semiautomatic/Manual |
| Ethernet | 10 Base-T,/ 100 Base TX, RJ45 Connector |
| Max. Image Resolution | 1920x1080 |
| Frame Rate | 50 Hz : 25 fps (1920x1080P) 60 Hz : 30 fps (1920x1080P) |
| Images Compression | H.264 |
| Audio Compression | G.711/16 bps |
| Protocols | TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, RTSP,PPOE, SMTP, NTP (FTP, SNMP optional) |
| No. Of Users | Up to 6 users |
| Dual Stream | Support |
| User/Host Level | 3 Levels: Administrator, Camera control, Live view only |
| Security Measures | User authentication (ID and PW), host authentication (MAC address) |
| Pan Range | 360 endless |
| Pan Speed | Pan manual speed : 0.1o ~200/s |
| Tilt Range | -5~92 (auto flip) |
| Tilt Speed | 0.01~120 /s |
| Pan preset speed | 250 /s |
| Number of Preset | 255 |
| Park Action | Preset/ Patrol/ Pattern/ Pan Scan/ Tilt Scan/Random Scan/ Frame Scan/Panorama Scan |
| PTZ Position Display | ON/OFF |
| Pattern | 4 patterns, with the recording time no less than 10 min per pattern |
| 3D Position | Yes |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Working Temperature/Humidity | -30C~65C (-22F~149F), 90% or less |
| Protection Level | IP66 |
| Power supply | 12 V/DC (24V/AC optional) |
| Power Consumption | 35W Max |
