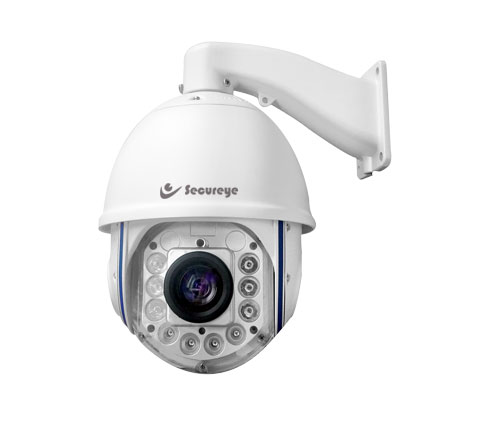

IP IR 1.3 MP 22x High Speed Dome Camera

S-IPHSD-1.3MP-30X

  • Support Day & Night Mode
  • 22x Optical Zoom
  • Support ONVIF
  • 1.3MP Resolution
  • Support remote update software
  • Built-in Web server
  • Auto-recovery
Enquiry
Download
Technical Specification
Images sensor 1/3” Sony Progressive scan CCD
Effective pixels 1.3 MP
Zoom 22x Optical
Minimum lllumination 0 Lux / F1.4 (IR ON)
White balance Auto/Manual/One Touch WB/ ATW
AGC Auto/ Manual
S/N Ratio > 50 dB
BLC ON/OFF
Shutter time 1/25-1/100,000s
Day & Night ICR
Auto Focus Auto /Semiautomatic/Manual
Ethernet 10 Base-T,/ 100 Base TX, RJ45 Connector
Max. Image Resolution 1280x960
Frame Rate 50 Hz : 15 fps (1280x960P) 25fps (1280x720P) 60 Hz : 20 fps (1280x960P) 30fps (1280x720P)
Images Compression H.264
Audio Compression G.711/16 bps
Protocols TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, RTSP,PPOE, SMTP, NTP (FTP, SNMP optional)
No. Of Users Up to 6 users
Dual Stream Support
User/Host Level 3 Levels: Administrator, Camera control, Live view only
Security Measures User authentication (ID and PW), host authentication (MAC address)
Pan Range 360 endless
Pan Speed Pan manual speed : 0.1o ~200/s
Tilt Range -5~92 (auto flip)
Tilt Speed 0.01~120 /s
Pan preset speed 250 /s
Number of Preset 255
Park Action Preset/ Patrol/ Pattern/ Pan Scan/ Tilt Scan/Random Scan/ Frame Scan/Panorama Scan
PTZ Position Display ON/OFF
Pattern 4 patterns, with the recording time no less than 10 min per pattern
3D Position Yes
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Working Temperature/Humidity -30C~65C (-22F~149F), 90% or less
ONVIF Supported
Protection Level IP66
Power supply 12 V/DC (24V/AC optional)
Power Consumption 35W Max
