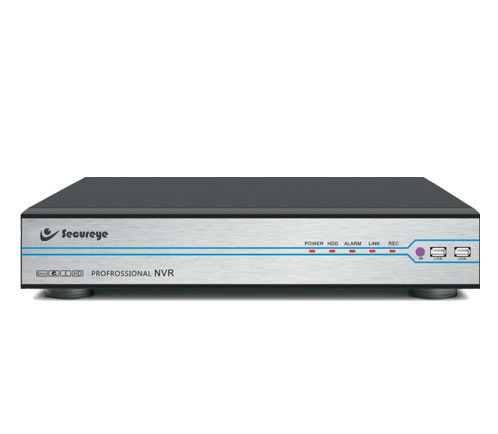

24 Channel Network Video Recorder
Download| Technical Specification | |
| Operating system | Embedded LINUX operating system |
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time |
| Operating interface | playback, multi-user network operation, USB backup |
| Display screen | 16-bit true color graphical menu interface and mouse support |
| Video Standard | 1 / 4 / 8 / 16 / 24 |
| Image coding | PAL/NTSC |
| Image quality | H.264(High Profile) |
| Playback quality | 1080P |
| Motion detection | Each screen have 192 (16*12) detective area; multi-level sensitivity (local channels only) |
| Audio compression | G.711A |
| Record mode | Manual / alarm / dynamic detection / time |
| Search mode | Point-in time retrieval, calendar search, event search, channel search |
| Record storage | Local hard disk, network |
| Backup storage | Network backup, USB Flash Drive, CD-RW |
| Video input | 24ch |
| Video output | 1ch BNC, 1ch VGA, 1ch HDMI |
| Audio output | 1ch RCA (200-300mV,5K?) |
| Control | IR Remote, USB Mouse, Front Panel |
| GUI Display | Time, Channel Title, Alarm Status, Recording Status |
| 3G | Supported (On Selected Model) |
| Email Notification | Yes |
| LED Indication | Power, Recording, HDD, Link |
| Plug & Play DDNS | Yes |
| IP Filter | Yes (IP Can be filtered into Black list & White list) |
| Network interface | Rj45 10M/100M/ adaptive ethernet port |
| PTZ control | 1RS485, 15 kind of PTZ protocols |
| USB interface | 3 USB Port |
| SATA interface | 4 SATA Interface |
| Power | 12V / 8A |
