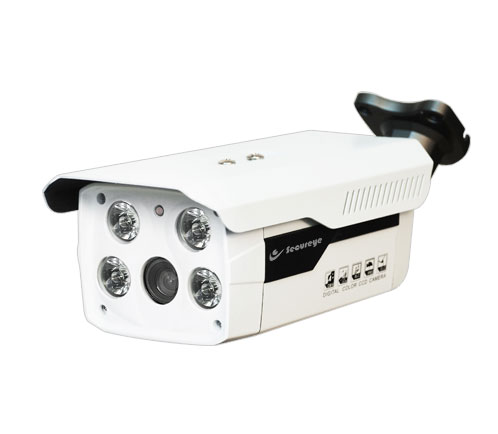

720P IP Weatherproof 100M IR Camera

S-1MP-W100

  • Compression: H.264
  • Sensor: 1/3”
  • Progressive Scan CMOS
  • Display Resolution: 1MP
  • Illumination: 0 Lux / F1.2 (IR ON)
  • Lens: 25 mm
  • IR LED: 4 LED Array
  • IR Range: 100m
Enquiry
Download
Technical Specification
Sensor 1/3” Progressive Scan CMOS
OS Embedded Linux System
Resolution 1MP
Illumination 0 LUX / F1.2
Lens 25 mm
IR Range 100m
Compression H.264
Image Frame Rate 25 / 30 FPS
Systems PAL / NTSC
Synchronization Internal
Electronic Shutter 1/1s~1/10,000s
Image Setting Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
White Balance Auto
Network Protocols TCP/IP, HTTP, TCP, ICMP, DHCP, UDP, SMTP, FTP, DDNS & RTSP
ICR Function Supported
Static IP/DDNS No Static IP, No DDNS Required
Multi Streaming Supported
Password Supported
POE Optional
ONVIF Compliant
Communication Interface RJ45 10/100M
Operating Temperature -20°C ~ +65°C
Humidity ≤ 95% Non-condensation
Power DC 12V 1A
