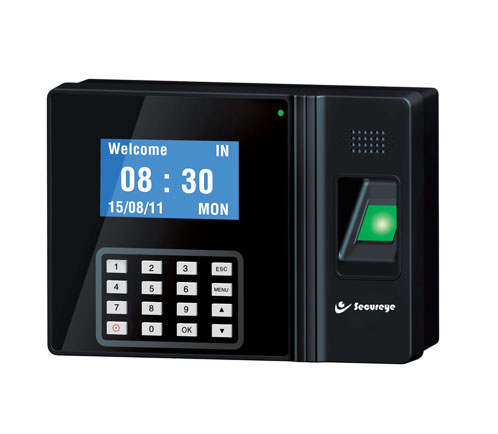

Fingerprint Time Attendance System

S-B100CB

  • 32bit RISC CPU
  • 3" B/W LCD Display
  • High Resolution Optical Fingerprint Scanner
  • Voice Guided Instruction
  • TCP/IP/ & USB Communication Mode
  • USB Data Backup Supported
  • Lock Control Supported
  • Online or Offline Data Transmission
  • CE & FCC Certification
Enquiry
Download
Technical Specification
CPU 32bit RISC CPU
Display 3" B/W LCD
Fingerprint Scanner High Resolution Optical (≥ than 600dpi)
False Fingerprint Detection Embedded
Transaction Record 1,20,000 Impressions
Users 6000
Authentication Mode Fingerprint, Password, Proximity Card
Instruction Voice Guided
Communication Mode TCP/IP/ & USB
FAR & FRR 0.0001% & 0.01% max
Speed Mode IEEE 802.2, Ethernet TCP/IP
Authentication Angle 360°
Data Backup Support USB
Authentication OSD Person Name and ID display
Synchronization Automatic Server to Device Synchronized
Data Transmission Online or Offline
Lock Control Supported
Proximity Card Reader Built-in
Optional Features Web Server, WiFi, 3G, Antipass, Mifare(Smart Card)/HID Card Reader
Temperature Humidity -10°C ~ 50°C lower then 90% RH
Source of Power DC 9V
Power Backup Battery (5 ~ 8 hrs)
Certification CE & FCC
