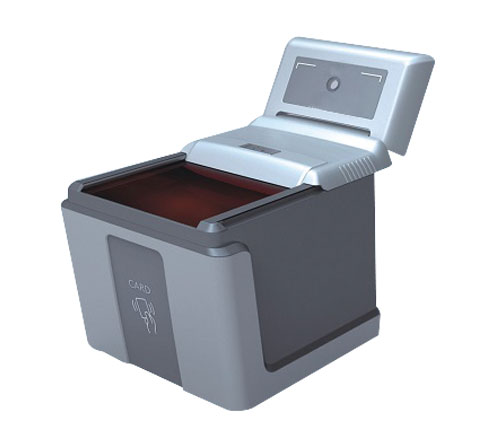

10 Fingerprint Scanner

S-10FS

It is the first compact and portable all in one fingerprint capture system which has the capability of capturing single flats, rolls, 4 finger slaps and 2 thumbs simultaneously. This is designed for rapid forensic quality fingerprint capture, which meets the U.S government's stringent biometrics standards, and enable it works with Integrated Automated Fingerprint Identification System (IAFIS).


  • FBI PIV certified when used with the single finger attachment
  • Automatic capture of flats fingerprints
  • Rapid fingerprint capture max 20 frames per second
  • Compact size that easily integrates into existing applications
Enquiry


Download
Technical Specification
Fingerprint Types Single flats, rolls, 4+4 finger slaps and 2 thumbs
Capture Area 3.2" x 3.2" (81mm x 76mm)
Image Size 1600 x 1500 pixels
Image Resolution 500 DPI
Image Grayscale 256 shades (8-bit gray level)
Image Capture Speed 5 frames/sec
Date Interface USB 2.0 high speed
Power Supply Via USB connection
Operating Voltage 5V + 5%
Working Current 400mA
Dimensions 4.9" x 5.9" x 4.7" (124mm x 150mm x 120mm)
Weight 4.0 lbs (1.8 kg)
Operating Systems Supported Windows 7, Vista, XP (32-bit recommended)
Operating Temperature -10°C ~ 55°C
Operating Humidity 10%-90%, non-condensing
