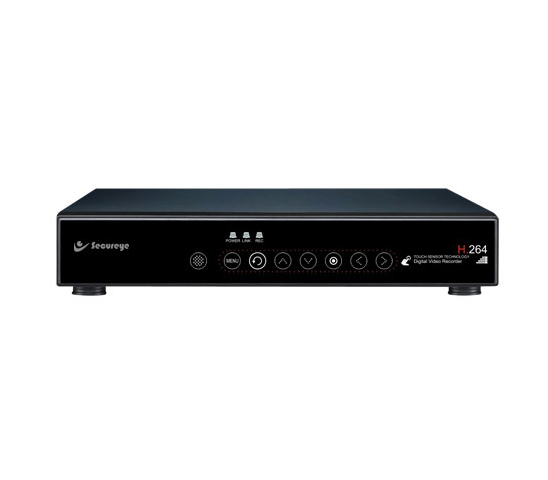

4 Channel 4V4A SDVR with HDMI

S-H4400

  • Embedded Linux OS
  • Standard H.264 compression
  • 4 Ch. Video input
  • 4 Ch. Audio input
  • Support VGA & HDMI
  • Support mobile phone viewer (Windows Mobile/Symbian/iPhone/ Android/BlackBerry)
  • Embedded Web Server easy for remote monitoring.
  • 1 SATA interfaces, support 2TB HDD
  • Support multiple DDNS
  • PTZ control by mouse and Controller
enquiry
Download
Technical Specification
Main Processor High Performance Embedded Microprocessor
Operation System Embedded Linux OS
Signal System PAL/NTSC
System Resource Recording, Playback, Remote Access
Operation Interface Front Touch Panel, Mouse, Remote
Video Split 1 / 4 Split Display
Video Playback Resolution D1
Bit rate Control Dual stream
Image Control 6 Levels
Recording Speed PAL: 25fps/channel, NTSC: 30fps/channel
Motion Detection Configurable detection areas
Audio Compression G.711
Recording Prioritys Manual > Alarm > Motion Detection > Schedule
Playback Search Date, Time, Event, Channel
Video Storage Local HDD
Backup Mode USB, DVDRW
Video Input 4 channel BNC
Video Output 1 channel BNC, 1 channel VGA (800×600 1024×768 optional)
HDMI Output Yes
Audio Input 4 channel RCA
Audio Output 1 channel RCA
Ethernet Interface RJ45 10M/100M Base-TX
PTZ Interface 1 x RS485
USB Interface 2 x USB2.0
HDD / SATA Interface 1 x SATA
DVDRW Supports USB
Power Supply DC12 10%
Power Consumption <15W (HDD not included)
Working Temperature -10°C~ +55°C
Working Humidity 10%~90% RH
