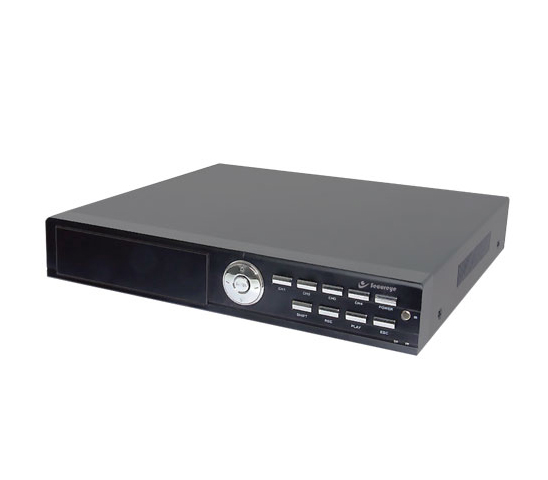

8 Channel SDVR With 8 Audio & 2 HDD With Internal DVDRW

S-CD8AV

  • Embedded Linux OS
  • Standard H.264 compression
  • 8 Ch. Video input
  • 8 Ch. Audio input
  • Support VGA, CVBS output
  • Embedded Web Server easy for remote monitoring.
  • 2 SATA interfaces, support 2TB HDD
  • Support multiple DDNS (Oray, 3322, DynDNS)
  • iPTZ control by mouse and Controller
  • USB & Internal DVDRW Supported
  • USB Wifi & 3G Modem Supported
enquiry
Download
Technical Specification
Main Processor High Performance Embedded Microprocessor
Operation System Embedded Linux OS
Signal System PAL/NTSC
System Resource Recording, Playback, Remote Access
Operation Interface Mouse, Front Panel, Remote Control
Video Split 1 / 4 /8 /9 Split Display
Video Playback Resolution CIF
Bit rate Control Dual stream
Image Control 6 Levels
Recording Speed PAL: 25fps/channel, NTSC: 30fps/channel
Motion Detection Configurable detection areas (22 × 18 blocks) and Sensitivity
Audio Compression G.711
Recording Priority Manual > Alarm > Motion Detection > Schedule
Playback Search Date, Time, Event, Channel
Video Storage Local HDD
Backup Mode USB
Video Input 8 channel BNC
Video Output 1 channel BNC, 1 channel VGA (800×600 1024×768 optional)
Audio Input 8 channel RCA
Audio Output 1 channel RCA
Ethernet Interface RJ45 10M/100M Base-TX
PTZ Interface 1 x RS485
USB Interface 2 x USB2.0
HDD/SATA Interface 2 x SATA
DVDRW Supports USB & Internal
Power Supply DC12 10%
Power Consumption <15W (HDD not included)
Working Temperature -10°C~ +55°C
Working Humidity 10%~90% RH
