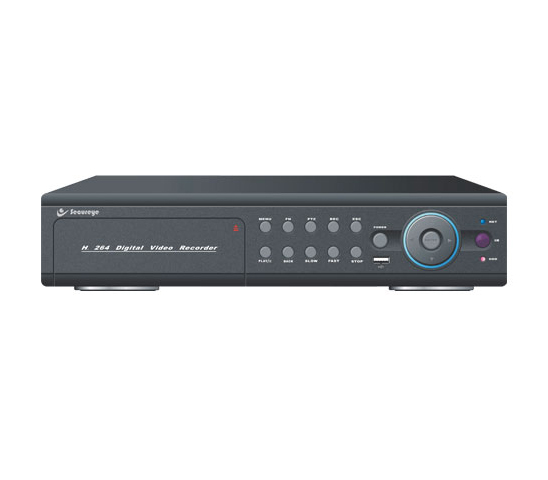

16 Channel SDVR With 4 Audio & 4 HDD With Internal DVDRW

S-CD16AVH4

  • Pentaplex Supported
  • 16 Ch. video input real-time recording
  • Support VGA & CVBS Output
  • Support mobile phone viewer (Windows Mobile/Symbian/iPhone/ Android/BlackBerry)
  • Standard H.264 compression
  • Support multiple DDNS (Oray, 3322, DynDNS)
  • iPTZ control by mouse and Controller
  • 4 SATA interfaces, support TB HDD DVDRW Supported
enquiry
Download
Technical Specification
Main Processor High Performance Embedded Microprocessor
Operation System Embedded Linux OS
Signal System PAL/NTSC
System Resource Recording, Playback, Remote Access
Operation Interface Mouse, Front Panel, Remote Control
Video Split 1 / 4 / 9 / 16 Split Display
Video Resolution CIF
Video Compression H.264 CBR / VBR
Image Control 6 Levels
Recording Speed PAL: 25fps/channel, NTSC: 30fps/channel
Motion Detection Configurable detection areas (22 × 18 blocks) and Sensitivity
Audio Compression G.711
Recording Priority Manual > Alarm > Motion Detection > Schedule
Playback Search Date, Time, Event, Channel
Video Storage Local HDD / Network
Backup Mode Network / USB
Video Input 16 channel BNC
Video Output 1 channel BNC, 1 channel VGA (Up to 1280×1024/60Hz)
Audio Input 4 channel RCA
Audio Output 1 channel RCA
Alarm Input 16 channel
Alarm Output 4 channel relay output (30V DC 2A, 125V AC 1A)
Ethernet Interface 10/100
PTZ Interface RS485
USB Interface 2 x USB2.0
HDD/SATA Interface 4 x SATA
Network Keyboard Support
Power Supply DC12 10%
Power Consumption < 20W (HDD not included)
Working Temperature -10°C~ +55°C
Working Humidity 10%~90% RH
Enclosure 1.5U
Dimensions 383(L)x440(W)x70(H)mm
Weight 5.1Kg (HDD not included)
Mounting Rack Mount, Desktop Mount
