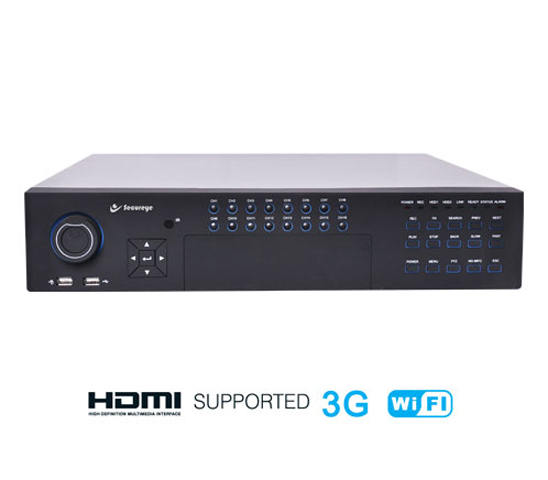

8 Channel SDVR

S-8C8H-HD

  • Embedded Linux OS
  • Standard H.264 compression
  • 8 Ch. Video input
  • 8 Ch. Audio input
  • Support VGA, BNC & HDMI Out
  • Support mobile phone viewer (Windows Mobile/Symbian/iPhone/ Android)
  • Embedded Web Server easy for remote monitoring.
  • 8 SATA interfaces, support 2TB HDD
  • Support multiple DDNS
  • PTZ control by mouse and Controller
enquiry
Download
Technical Specification
Main Processor High Performance Embedded Microprocessor
Operation System Embedded Linux OS
Signal System PAL/NTSC
System Resource Recording, Playback, Remote Access
Operation Interface Mouse, Front Panel, Remote Control
Video Split 1 / 4 / 9 / 16 Split Display
Video Playback Resolution D1
Bit rate Control Dual stream
Image Control 6 Levels
Recording Speed PAL: 25fps/channel, NTSC: 30fps/channel
Motion Detection Configurable Detection Areas and Sensitivity
Audio Compression G.711
Recording Priority Manual > Alarm > Motion Detection > Schedule
Playback Search Date, Time, Event, Channel
Video Storage Local HDD
Backup Mode USB & internal CD-RW/ DVD-RW Supported
Video Input 8 Channel BNC
Video Output 1 channel BNC, 1 channel VGA (800×600 1024×768 optional), HDMI
Audio Input 8 Channel RCA
Audio Output 1 Channel RCA
Alarm In 8 Channel
Alarm Out 4 Channel
Smart HDD Management Non Working HDD, Hibernation, HDD Faulty Alarm, Raid Function
Bi-directional Talk Supported (Optional)
Ethernet Interface RJ45 10M/100M Base-TX
PTZ Interface 1 x RS485
USB Interface 3 x USB2.0
HDD/SATA Interface 2TB x 8 SATA HDD
DVDRW Supports USB
Power Supply DC12V 10%
Power Consumption <15W (HDD not included)
Working Temperature -10°C~ +55°C
Working Humidity 10%~90% RH
