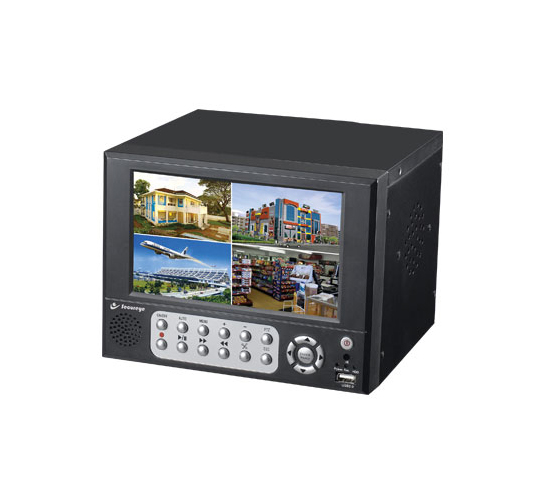

TFT LCD DVR With 4 Audio & 1 HDD
Download| Technical Specification | |
| Display | 7” High-Definition Digital LCD Display |
| Main Processor | High Performance Embedded Microprocessor |
| Operation System | Embedded Linux OS |
| Signal System | PAL/NTSC |
| System Resource | Recording, Playback, Remote Access |
| Operation Interface | Mouse, Front Panel, Remote Control |
| Video Split | 1 / 4 Split Display |
| Video Resolution | D1(4CIF) |
| Video Playback Resolution | D1 / HD1 / CIF |
| Bit rate Control | Dual stream |
| Image Control | 6 Levels |
| Recording Speed | PAL: 25fps/channel, NTSC: 30fps/channel |
| Motion Detection | Configurable detection area and Sensitivity |
| Audio Compression | G.711 |
| Recording Priority | Manual > Alarm > Motion Detection > Schedule |
| Local Playback | 4 channel synchronous playback |
| Playback Search | Date, Time, Event, Channel |
| Video Storage | Local HDD, USB HDD, Network |
| Backup Mode | USB HDD, Network |
| Video Input | 4 channel BNC |
| Video Output | 1 channel BNC, 1 channel VGA (800×600 1024×768 1280x1024 optional) |
| Audio Input | 4 channel |
| Audio Output | 1 channel |
| Alarm Input | 1 channel relay input |
| Alarm Output | 1 channel relay output (30V DC 2A, 125V AC 1A) |
| Ethernet Interface | RJ45 10M/100M Base-TX |
| PTZ Interface | 1 x RS485 |
| USB Interface | 2 x USB2.0 |
| HDD/SATA Interface | 2TB SATA |
| Power Supply | DC12 10% |
| Power Consumption | <15W (HDD not included) |
| Working Temperature | -10°C~ +55°C |
| Working Humidity | 10%~90% RH |
| Atmosphere Pressure | 86kpa~106kpa |
| Mounting | Desktop Mount |
