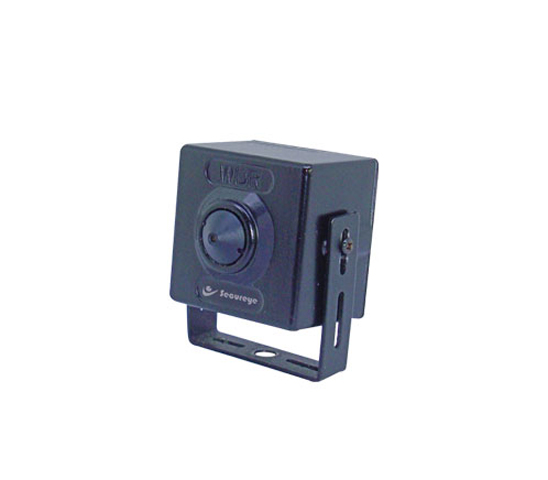

Pin Hole Camera, WDR & OSD

SPH-550B

  • 1/3" CCD Camera
  • 550 TV Lines of Horizontal Resolution
  • 0.01 Lux/F1.2 Min. Illumination
  • 3.6 mm Pin Hole Lens
  • Wide Dynamic Range
  • 4 Motion Detection Zone
  • 8 Privacy Zone
  • On Screen Display
enquiry
Download
Technical Specification
Image Sensor 1/3 Color CCD
Signal System PAL
Lens Cone Lens 3.6mm
Sync. System Internal
Horizontal Resolution 550TVL
S/N Ratio More than 48dB
Minimum Illumination 0.1 Lux/F 2.0
Video Output 1 Vp-p / 75 Ohms
White Balance Auto white Balance
Electronic Shutter NTSC: 1/60~1/100,000, PAL: 1/50~1/100,000
Electronic Shutter (sec) 1/60(1/50)~1/100,000
Electronic Shutter (sec) 1/60(1/50)~1/100,000
Motion Detection Zone 4
Privacy Zone 8
Auto Gain Control Auto
On Screen Display Yes
Gamma 0.15
Power Supply DC 12V
Power Consumption 117 mA max.
Operating Temperature -20°C ~ 60°C
