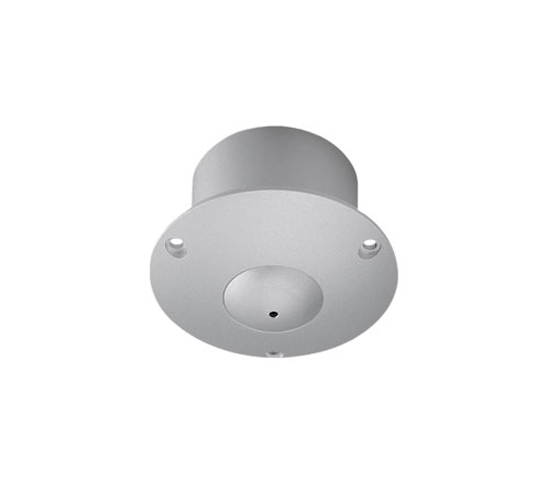

Pin Hole Camera (Celing Mount)

SPH-480S

  • 1/3" CCD Camera
  • 480 TV Lines of Horizontal Resolution
  • 0.1 Lux/F1.2 Min. Illumination
  • 3.6 mm Pin Hole Lens
  • DC 12V
enquiry
Download
Technical Specification
Image Sensor 1/3 Color CCD
Signal System PAL
Lens Cone Lens 3.6mm
Sync. System Internal
Horizontal Resolution 480TVL
S/N Ratio More than 48dB
Minimum Illumination 0.1 Lux/F 2.0
Video Output 1 Vp-p / 75 Ohms
White Balance Auto white Balance
Electronic Shutter NTSC: 1/60~1/100,000, PAL: 1/50~1/100,000
Electronic Shutter (sec) 1/60(1/50)~1/100,000
Auto Gain Control Auto
Gamma 0.15
Power Supply DC 12V
Power Consumption 117 mA max.
Operating Temperature -20°C ~ 60°C
