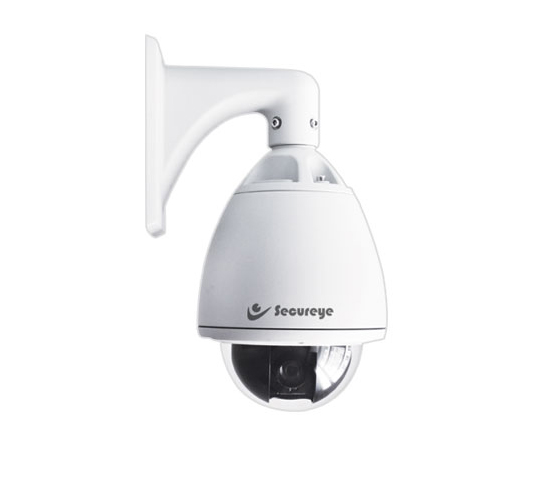

High Speed Dome Camera With OSD

SSD-700P-432D

  • 1/4″ CCD Camera
  • 700 TVL of Horizontal Resolution
  • WDR Supported
  • Auto White Balance
  • 128 Preset Positions
  • 36 x Optical & 12 x Digital Zoom
  • 256 Dome ID
enquiry
Download
Technical Specification
Image Sensor 1/4” Super HAD CCD II
Signal System PAL/NTSC
Signal Process DSP
Scanning System 2.1 Interlaced
Horizontal resolution 540TVL
Minimum illumination 0.01 Lux (Digital Slow Shutter up)
S/N radio Equal to or More than 50dB
PAN/Angle manual speed 0° -360° (Endless) More than 0.50~3000/sec (Zoom Proportional)
Tilt/Angle manual speed 0~90° More than 120° ~1sec (Zoom Proportional)
Baud Rate 1200bps, 2400bps, 4800bps, 9600bps
Zoom Capacity 36x Optical & 12x Digital
IRIS Control Supported
WDR On/Off
White Balance Selectable
Auto Exposure Automatic level control / Electronic level control
Alarm Input / Output 1
Auto Exposure Automatic level control / Electronic level control
AGC Auto
Electronic Shutter 1/50 - 1/10000
Privacy Zone 8
Day & Night Supported
ID (Camera Address) 256 minimum
Communication Pelco-P\D(RS-485 Port)
Preset Position 128
Tilting Range & Speed 0 ~ 5° above horizontal to 90 max, 120 p/s
OSD English
Back Light Compression Off/Low/Medium/High Selectable
Scan Auto scan, limit scan(speed adjustable)
Tour Scan 9 tour, 16 preset position per tour, speed and dwell time can be adjustable
Pattern scan 4 pattern, 15 minutes recording for each pattern
Dwell setup Home place / autoscan / tourscan / patternscan
Body Type IP 66
Power AC 24V 50/60HZ 3A
Humidity <95%
Power Consumption 15w - 25w
Operating Temperature -20 C ~ 60 C
Mounting Bracket Standard wall mount & pole mount(Optional)
Stand Comes with Indoor or Outdoor
