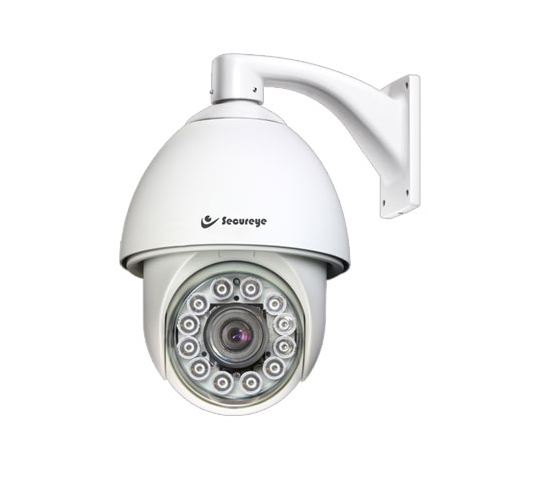

30x High Speed Dome Camera

SSD-30DIR

  • 1/4″ CCD Camera
  • 540 TVL of Horizontal Resolution
  • IR Mode - ON/OFF/Auto
  • IR Distance- 100 mts
  • WDR Supported
  • Auto White Balance
  • 128 Preset Positions
  • 36 x Optical Zoom
enquiry
Download
Technical Specification
Image Sensor 1/4” Super HAD CCD II
Signal System PAL/NTSC
Signal Process DSP
Scanning System 2.1 Interlaced
Horizontal resolution 540TVL
Minimum illumination 0.01 Lux (Digital Slow Shutter up)
IR LED 12 Big size LED Array
IR Distance 100 ~ 150 mtr
S/N radio Equal to or More than 50dB
PAN/Angle manual speed 0° -360°
Tilt/Angle manual speed 0~90°
Baud Rate 1200bps, 2400bps, 4800bps, 9600bps
Zoom Capacity 30x Optica
IRIS Control Supported
White Balance Selectable
Auto Exposure Automatic level control / Electronic level control
AGC Auto
Day & Night Supported
ID (Camera Address) 256 minimum
Communication Pelco-P\D(RS-485 Port)
Back Light Compression Off/Low/Medium/High Selectable
Scan Auto scan, limit scan(speed adjustable)
Body Type IP 66
Power AC 24V 50/60HZ 3A
Humidity <95%
Power Consumption 15w - 25w
Operating Temperature -20 C ~ 60 C
Mounting Bracket Standard wall mount & pole mount(Optional)
