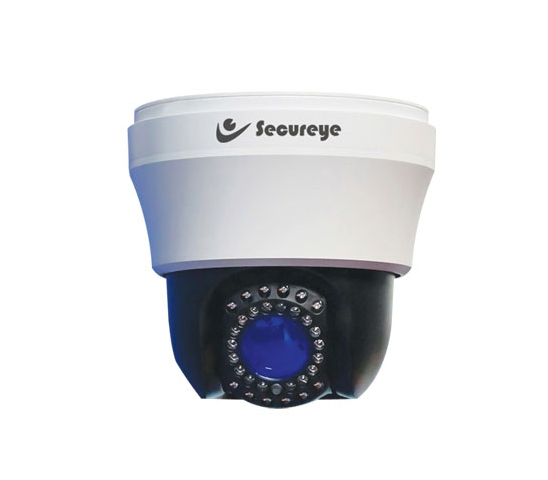

10x High Speed Dome Camera

SSD-10DIRIN

  • Indoor endless high speed dome
  • 0.01 Lux
  • Aluminum body and ploy carbonate dome cover
  • 256 preset positions
  • Indoor Application
  • 50m IR Distance
enquiry
Download
Technical Specification
Image Sensor 1/4" CCD
Signal model PAL/NTSC
Horizontal resolution 550 TVL
Effective pixel 752(Horizontal)x 582(Vertical)
Minimum illumination Color to B/W, Color: 0.01Lux, B/W: 0.001Lux
S/N radio ≥50dB(Enhanced
Backlight compensation On/Off
White balance Auto
Electronic shutter 1/50~1/12000 seconds
Focus length 3.9~39.0mm
Optical focus 10X
Focus Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function
Presets 256
Patrol track 4 groups, each can record 100 actions
Cruise track Total 30 presets can join cruise, can setting the presets' residence time
Other scan Support Horizontal scan, deuce area scan, scan random
Rotation range Horizontal 360° unlimted rotation, Vertical 180°, auto reversal
Rotation speed Horizontal & Vertical Min 0.01° ,Max 300°/S
Communications RS-485, PELCO D, PELCO P
OSD Yes
Temperature control Built-in
IR Distance 50m
Power supply DC12V/3A
Material Aluminum shell, waterproof IP66
Work environment 20°C ~ +50°C select temperature control accessories), < 95%RH
