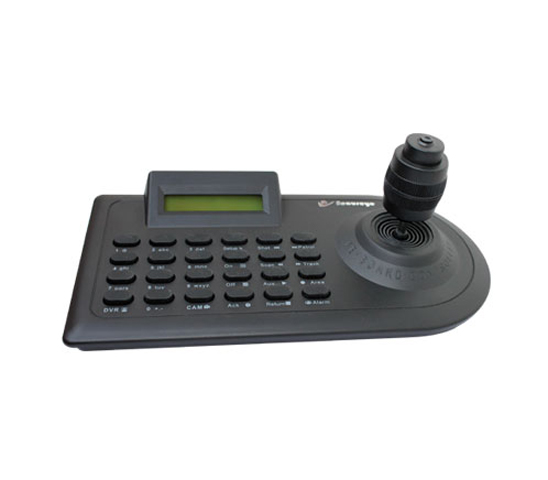

4D Keyboard

S-4DK

  • 4 Axis
  • RS485 Communication Interface
  • Pelco-D/Pelco-P Protocol
  • Keyboard & Joystick Operation
  • 3bit LED Display
  • 1200,2400,4800,9600 Baud Rate
enquiry
Download
Technical Specification
Kind 4 Axis
Signal System NTSC/PAL
Video In 1.0Vpp, 75 ohms(BNC)1ch video in
Video Out 1.0Vpp, 75 ohms(BNC)1ch video out
Communication Interface RS485
Communication Protocol Pelco D
Baud Rate 1200,2400,4800,9600
Operation Keybaord & Joystick
Display 3bit LCD
Power Requirment DC9V-12V
Working Temperature -20°C-+50°C
