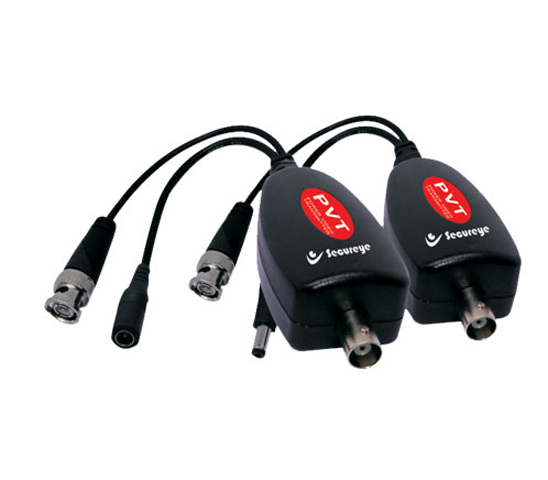

Power solution on Coaxial Cable

S-PVT

  • Transmission Distance: 800 Meters
  • Input Voltage: DC 36V 1A
  • Video input impedanc: BNC:75Ù
  • Output Voltage: DC 12V 1A
  • Output ripple: Less than 240MV
enquiry
Download
Technical Specification
Transmission Distance 800 Meters with interference-free
Wire Category Coaxial Cable:75-5 (RG60, RG 59 recommended) or higher
Video transmission bandwith 0.5MHZ-10MHz
Input voltage DC 36V 1A
Input frequency 50MHZ-60MHz 20%
Leakage current N/A
Output voltage DC 12V 1A
Output voltage adjustment range DC 12V
Output current thr rated 800MA, MAX 1000MA
Output ripple Less than 240MV
Overload protection Output current more than 800MA, Protection circuit disconnect the load, and then automatic connection after the working current to be normal
Video input 1.0v-vP Automatically adapted
Video input impedanc Coax BNC:75Ù
Working Humidity 10%--90%
Material Plastic
Working Temperature -50°C ~ +50°C
