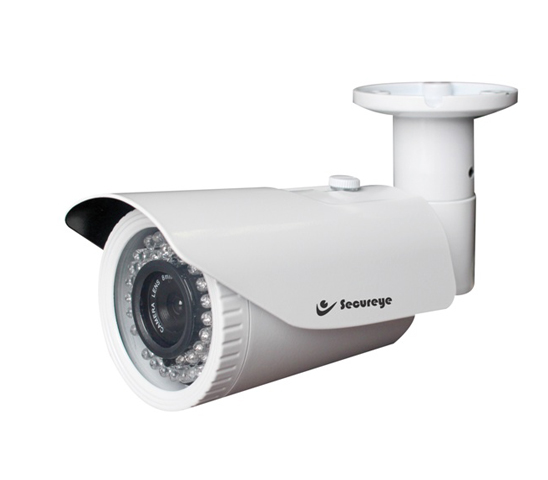

Weatherproof IR Camera 40m

S40-W650IR

  • 1/3" HDIS Sensor
  • 650 TV Lines of Horizontal Resolution
  • 0 Lux/F1.2 Min. Illumination (IR ON)
  • 6mm Fixed Lens
  • 48 IR LED (40 Meters IR Range)
enquiry
Download
Technical Specification
Image Sensor 1/3" HDIS
Signal System PAL
Lens 6mm Fixed Board
Horizontal Resolution 650 TVL
Effective Pixel 768(H) x 494(V)
S/N Ratio More than 50dB
IR LED 48
IR Distance 40 Meters
Video Output Signal 1.0Vp-p Composite Signal (75 Ohms)
Scanning Frequency 15.625 Khz (H) & 50Hz
Scanning System 2.1 Interlaced
Minimum Illumination 0 Lux/F1.2 (IR ON)
Signal Process Digital
Electronic Shutter 1/50-1/100,000
White Balance Auto
Digital Noise reduction Supported
Day & Night Auto
Operating Temperature -10 C to 50 C
Housing - Outdoor Metal Construction
Power Source DC 12V
Auto Gain Control Yes
