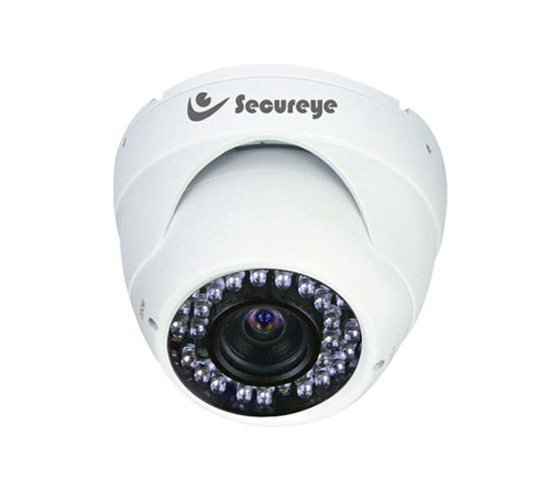

Dome Camera Varifocal with WDR & OSD

SN-D700IRV

  • 1/3" CCD Camera
  • 700 TV Lines of Horizontal Resolution
  • 0 Lux/F1.2 Min. Illumination (IR ON)
  • 2.8 ~ 12mm Varifocal Lens
  • 24 IR LED (40 ~ 50 Meters IR Range)
  • Wide Dynamic Range / ATR
  • 4 Motion Detection Zone
  • 8 Privacy Zone
  • On Screen Display
enquiry
Download
Technical Specification
Image Sensor 1/3" CCD Camera
Signal System PAL
Lens 2.8 ~ 12mm Varifocal Lens
Horizontal Resolution 700 TVL
Effective Pixel 768(H) x 494(V)
S/N Ratio More than 50dB
IR LED 24 IR LED
IR Range 40 ~ 50 Meters
Video Output Signal 1.0Vp-p Composite Signal (75 Ohms)
Scanning Frequency 15.625 Khz (H) & 50Hz
Auto Exposure Automatic Level Control/Electronic Level Control
Minimum Illumination 0 Lux/F1.2 Min.(IR ON)
Signal Process Digita
Motion Detection Zone 4
Privacy Zone 8
Auto Gain Control On/Off
Back Light Compensation Indoor/Outdoor/Off
Wide Dynamic Range / ATR Supported
Electronic Shutter 1/50-1/100,000
White Balance Indoor/Outdoor/Manual
Digital Noise reduction Supported
IRIS Control Auto
On Screen Display Yes
Operating Temperature -20° C to 60° C
Power Sourc DC 12V
