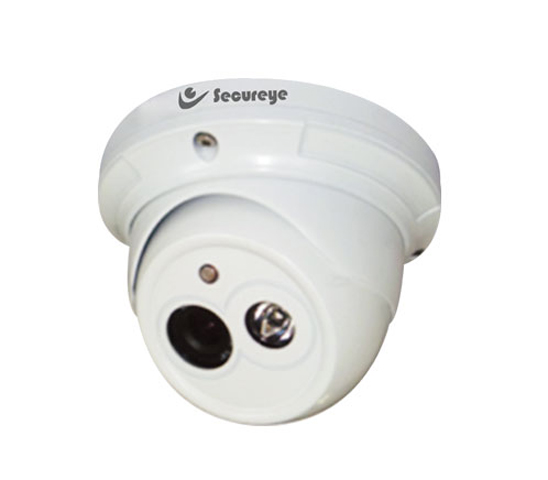

Dome IR with WDR & OSD

SN-D700IR

  • 1/3" CCD Camera
  • 700 TV Lines of Horizontal Resolution
  • 0 Lux/F1.2 Min. Illumination
  • 3.6mm Fixed Board Lens
  • Wide Dynamic Range / ATR
  • 4 Motion Detection Zone
  • 8 Privacy Zone
  • On Screen Display
enquiry
Download
Technical Specification
Image Sensor 1/3" CCD Camera
Signal System PAL
Lens 3.6mm Fixed Board Lens
Horizontal Resolution 700 TVL
Effective Pixel 768(H) x 494(V)
S/N Ratio More than 50dB
IR LED 1 LED Array IR
IR Range 10 Meters
Video Output Signal 1.0Vp-p Composite Signal(75 Ohms)
Scanning Frequency 15.625 Khz (H) & 50Hz
Scanning System 2.1 Interlaced
Auto Exposure Automatic Level Control/Electronic Level Control
Minimum Illumination 0 Lux/F1.2
Signal Process Digital
Motion Detection Zone 4
Privacy Zone 8
Auto Gain Control On/Off
Back Light Compensation Indoor/Outdoor/Off
Wide Dynamic Range / ATR Supported
Electronic Shutter 1/50-1/100,000
White Balance Indoor/Outdoor/Manual
Digital Noise Reduction Supported
Day & Night Auto
IRIS Control Auto
On Screen Display Yes
Operating Temperature -20° C to 60° C
Power Source DC 12V
