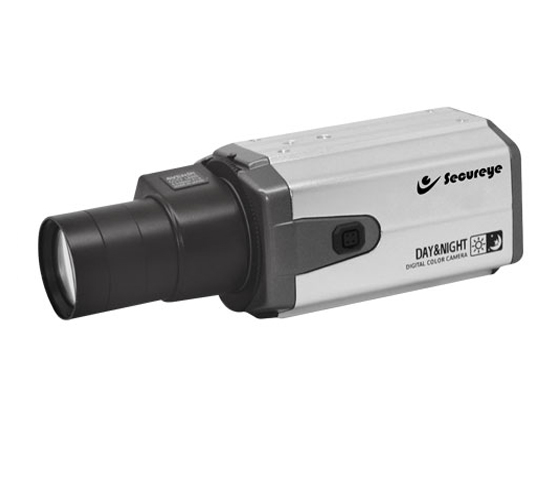

C-mount Camera with WDR & OSD

SN-C700

  • 1/3" CCD Camera
  • 700 TVL of Horizontal Resolution
  • 0.01 Lux/F1.2 Min. Illumination
  • C/CS Lens (Optional)
  • Auto-IRIS Supported
  • Wide Dynamic Range
  • 4 Motion Detection Zone
  • 8 Privacy Zone
  • On Screen Display
enquiry
Download
Technical Specification
Image Sensor 1/3" CCD Camera
Signal System PAL
Lens C/CS Lens (Optional)
Horizontal Resolution 700 TVL
S/N Ratio More than 50dB
Video Output Signal 1.0Vp-p Composite Signal (75 Ohms)
Scanning Frequency 15.625 Khz (H) & 50Hz
Auto Exposure Automatic Level Control/Electronic Level Control
Minimum Illumination 0.01 Lux/F1.2
Signal Process Digital
Motion Detection Zone 4
Privacy Zone 8
Digital Zoom 4X
Auto Gain Control On/Off
Back Light Compensation Indoor/Outdoor/Off
ATR / WDR Supported
Electronic Shutter 1/50-1/100,000
White Balance Indoor/Outdoor/Manual
Digital Noise reduction Supported
Day & Night Auto
Auto-IRIS Supported
On Screen Display Yes
Operating Temperature -20° C to 60° C
Power Source DC 12V
